Camera

    Image Sensor 2 MP CMOS image sensor

    Signal System PAL/NTSC

    Frame Rate “PAL: 1080p@25fps
    NTSC: 1080p@30fps

    Resolution 1920 (H) × 1080 (V)

    Min. illumination 0.02 Lux@(F1.2, AGC ON), 0 Lux with IR

    Shutter Time “PAL: 1/25 s to 1/50, 000 s
    NTSC: 1/30 s to 1/50, 000 s

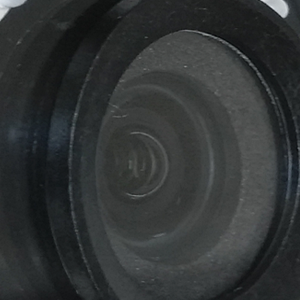

    Lens 3.6 mm fixed lens

    Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm)

    Lens Mount M12

    Day & Night IR cut filter

    Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

    Synchronization Internal synchronization

    WDR (Wide Dynamic Range) DWDR

Menu

    Image Mode STD/HIGH-SAT

    AGC Support

    Day/Night Mode Smart/color/BW(Black and White)

    Backlight Compensation Support

    DWDR Support

    Language English

    Functions Brightness, Sharpness, DNR, Mirror

Interface

    Video Output 1 HD analog output

General

    Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)

    Power Supply 12 VDC±15%

    Power Consumption Max. 4 W

    Ingress Protection IP66

    Material Plastic

    IR Range Up to 20 m

    Dimensions Ø 60.5 mm × 145.63 mm (Ø 2.38inch × 5.73inch)

    Weight Approx. 140 g (0.31 lb.)
